Form field reference analysis

Form Field Reference Analysis Function is to analyze the form fields being referenced by those layouts, pages and processes. This feature is very meaningful for impact analysis and form field modification.

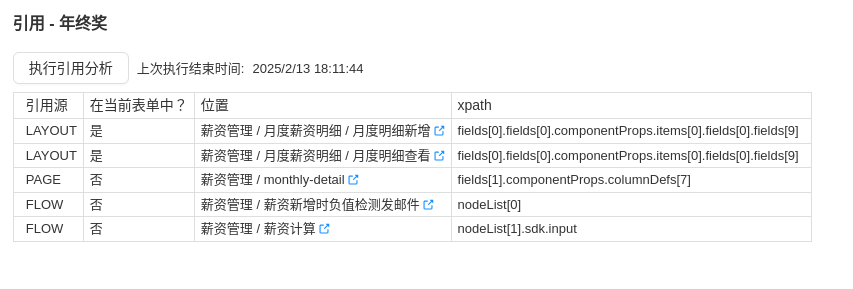

The results of form citation analysis are as follows:alt text

Trigger form field reference analysis​

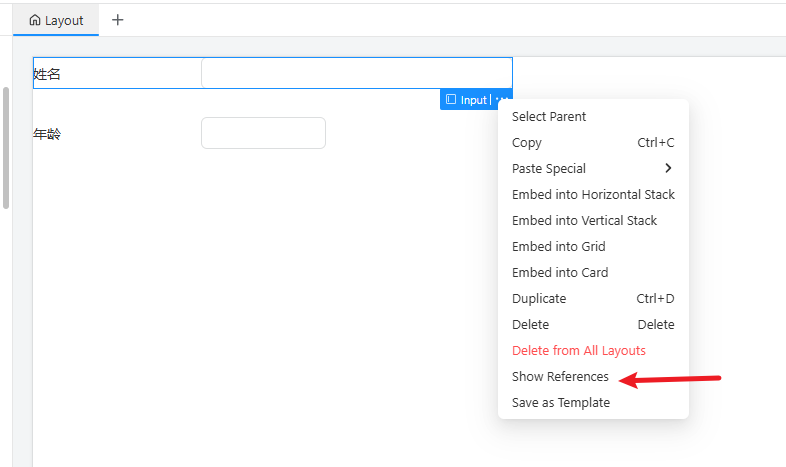

  1. In the detailed drop-down menu of the form field
    alt text

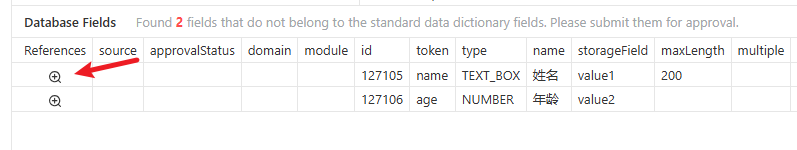

  2. At the beginning of the database field list
    alt text

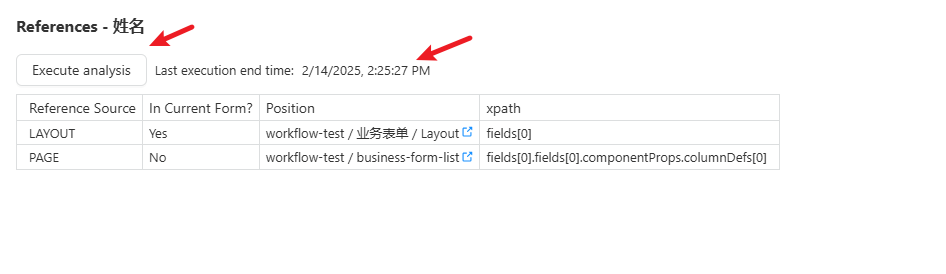

The Reference list contains the button to retrieve the reference analysis and the time when the reference analysis was last completed：
alt text

Jump to the corresponding position according to citation analysis​

The position column of reference analysis has a jump button. Click this button to jump to the specific position of the field reference.

alt text
