Deployment

Codifier is a version control tool for Ceta platform's Seed-Data configuration code.

Table of Contents

• Architecture
• System Requirements
• Deployment Methods
  • Method 1: Docker Deployment (Recommended)
  • Method 2: Run JAR Directly
• Environment Variables
• Project Configuration
• Data Persistence

---

Architecture

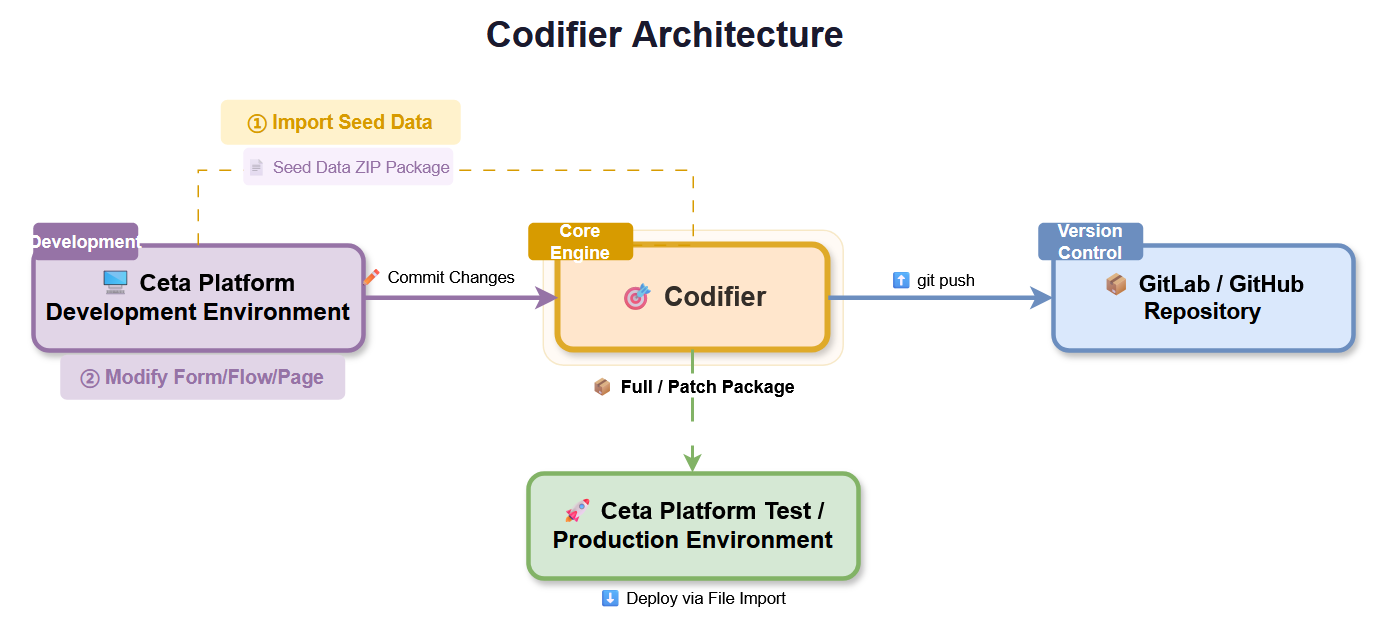

Codifier is a version control tool for Ceta platform's Seed-Data configuration code. Its deployment architecture is shown below:

---

System Requirements

Item	Requirement
JDK	17+
Maven	3.8+
Docker	20.10+ (for Docker deployment)
Memory	Minimum 2GB
Disk	Reserve 5GB+ (including Git clone cache)

---

Deployment Methods

Method 1: Docker Deployment (Recommended)

# 1. Build
mvn -s settings.xml -B clean package -DskipTests
cp target/ceta-codifier-1.0.0.jar ./ceta-codifier.jar

# 2. Build image
docker build -t ceta-codifier:latest .

# 3. Run
docker run -d \
  --name ceta-codifier \
  -p 8090:8090 \
  -v $(pwd)/data:/app/data \
  -v $(pwd)/logs:/app/logs \
  -e SERVER_PORT=8090 \
  -e AUTH_USERNAME=admin \
  -e AUTH_PASSWORD=your-password \
  -e CRYPTO_MASTER_KEY=your-master-key \
  -e JWT_KEY=your-jwt-key \
  --restart unless-stopped \
  ceta-codifier:latest

Method 2: Run JAR Directly

# Foreground
java -Xms2g -Xmx2g -jar ceta-codifier-1.0.0.jar

# Background (Linux)
nohup java -Xms2g -Xmx2g -jar ceta-codifier-1.0.0.jar > /dev/null 2>&1 &

# With environment variables
export SERVER_PORT=8090
export AUTH_USERNAME=admin
export AUTH_PASSWORD=your-password
java -jar ceta-codifier-1.0.0.jar

---

Environment Variables

Basic Configuration

Variable	Description	Default
SERVER_PORT	Server port	8090
AUTH_ENABLED	Enable authentication	true
AUTH_USERNAME	Built-in admin username	admin
AUTH_PASSWORD	Built-in admin password	admin123
JWT_KEY	JWT signing key	!@#123Bot
JWT_EXPIRE_HOURS	JWT expiration time (hours)	24
CRYPTO_MASTER_KEY	Token encryption master key	s3Ed-DaTa-M@st3r-K3y!

Logging Configuration

Variable	Description	Default
LOG_LEVEL_ROOT	Root log level	INFO
LOG_LEVEL_APP	Application log level	DEBUG

File Upload Limits

Variable	Description	Default
MULTIPART_MAX_FILE_SIZE	Maximum single file size	100MB
MULTIPART_MAX_REQUEST_SIZE	Maximum request size	100MB

---

Project Configuration

After startup, visit http://host:8090/codifier/ → Project Management page to add/edit/delete projects online.

Project data is saved in data/projects.json, with tokens automatically encrypted for storage.

---

Data Persistence

The following directories need to be persisted (mounted as volumes in Docker deployment):

Directory	Description
data/	Project configuration file projects.json + Git repository local cache
logs/	Application logs + commit request logs

# Docker mount example
-v /opt/ceta-codifier/data:/app/data
-v /opt/ceta-codifier/logs:/app/logs
