流式读取Excel SDK

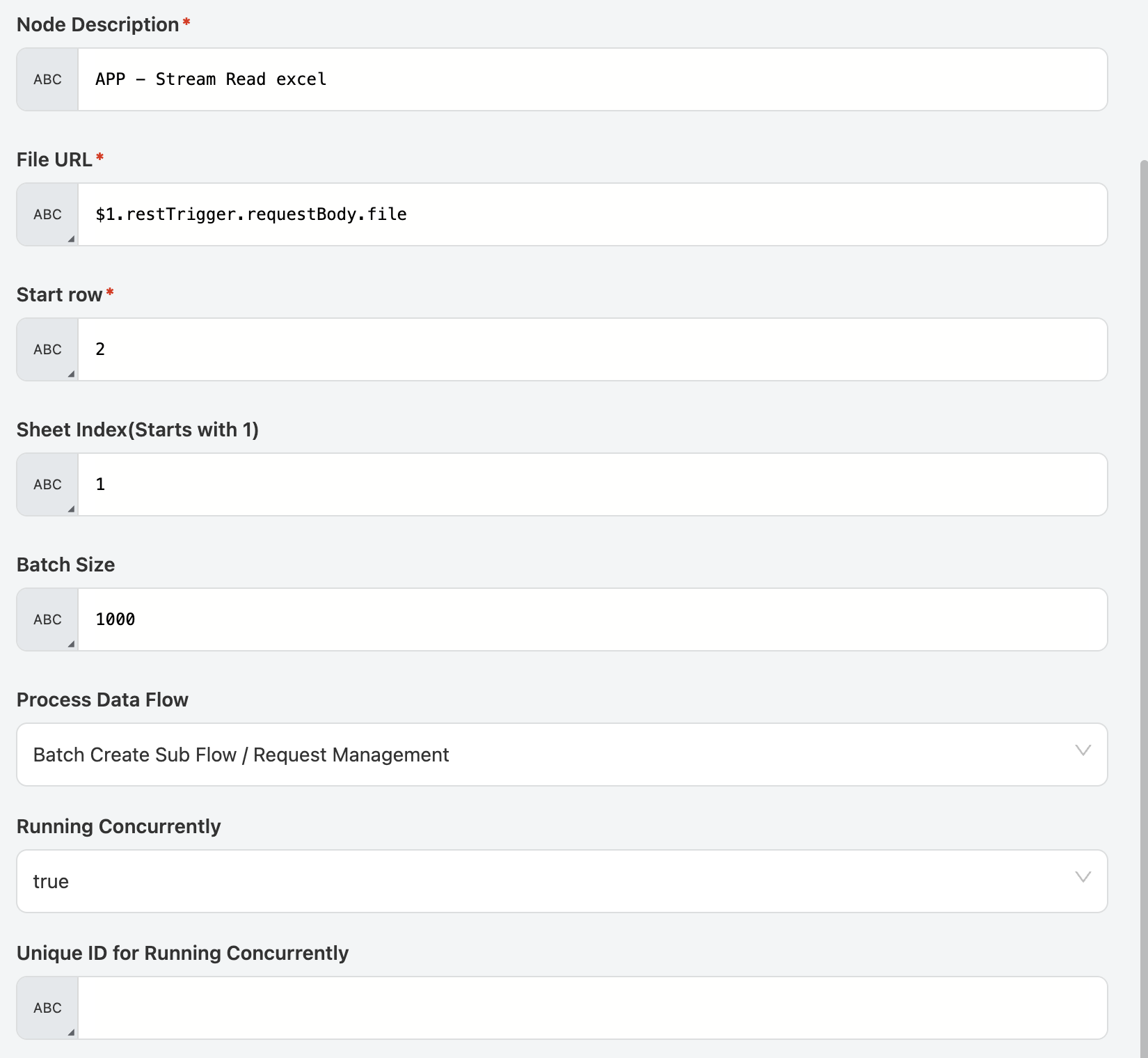

1. 配置

1.1 File URL

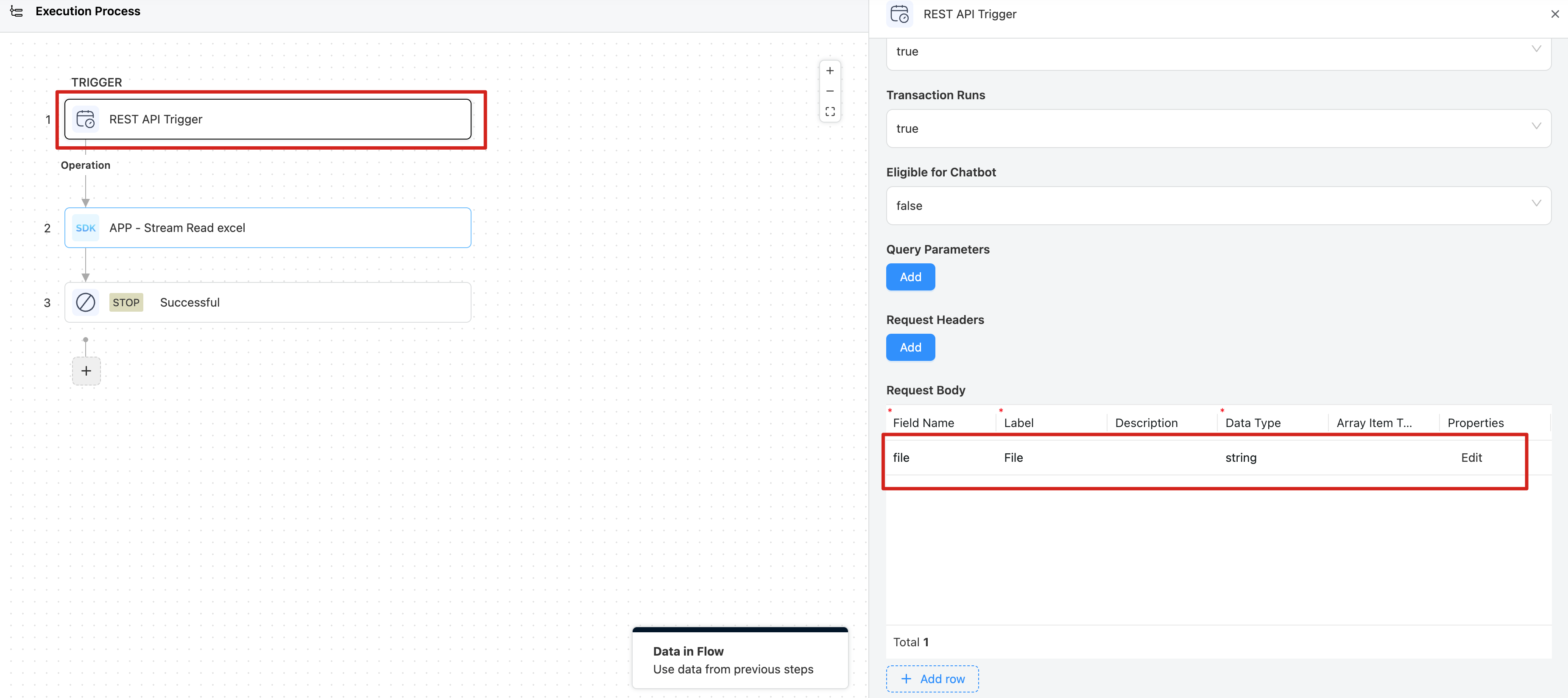

File URL 必须是Rest Flow上传的文件，通常情况下Rest Flow的Trigger节点需要如下配置

然后File URL的input框中，只需要填入$1.restTrigger.requestBody.file这个值即可。

1.2 Start row

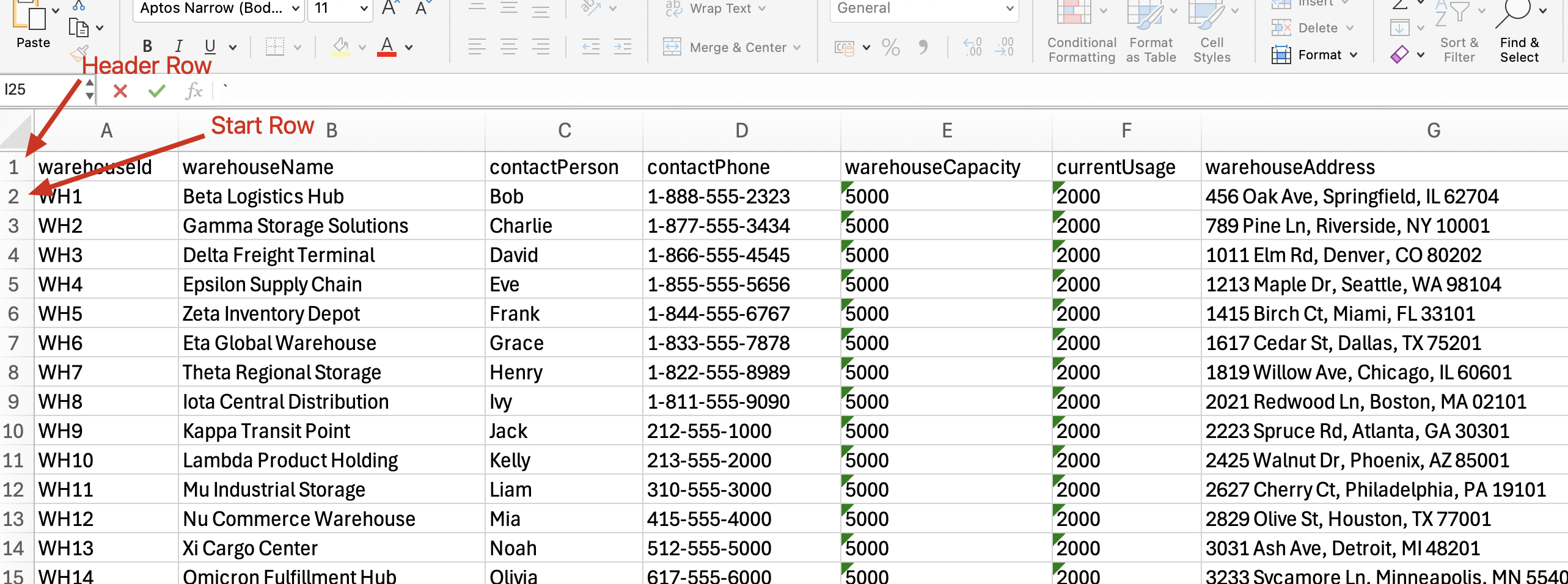

Start row指的是Excel中值开始的行，通常情况下如果第一行是Header，那么Start Row就是2，Excel样式如下

1.3 Sheet Index(Starts with 1)

数据所在Sheet的第几页，一版情况下是第一页

1.4 Batch Size

每次读取多少行，对于大数据而言可以设置到5000行左右

1.5 Process Data Flow

流式读取数据的时候，每读取一批（Batch Size）数据，就会把数据交给Process Data Flow执行。

Process Data Flow是以子流程的方式运行的，所以Process Data Flow的第一个Trigger节点是父流程触发，该子流程接受4个固定参数

• excelData - 每一批次传给Process Data Flow的数据
• startRowNum - 这一批次数据在Excel中的开始行数
• endRowNum - 这一批数据在Excel中的结束行数
• uniqueId - 唯一ID，用于并发运行时断点续传

如果Running Concurrently设置为false，则只接受一个excelData也可。

1.6 Running Concurrently

是否并发运行Process Data Flow。

• false：如果设置为false，程序可以保证读取的所有数据都在一个事务中运行，也就是所有数据可以一起回滚
• true：如果设置为true，就是并发运行，程序只能报错一个Batch（即调用一次Process Data Flow）的数据在一个事务中。

1.7 Unique ID for Running Concurrently

如果Running Concurrently设置为true，我们提供一种机制断点续传续传

2. 案例分享

2.1 非并发导入大量数据

简单的导入大量数据，即Stream Read Excel SDK中，设置Running Concurrently为false

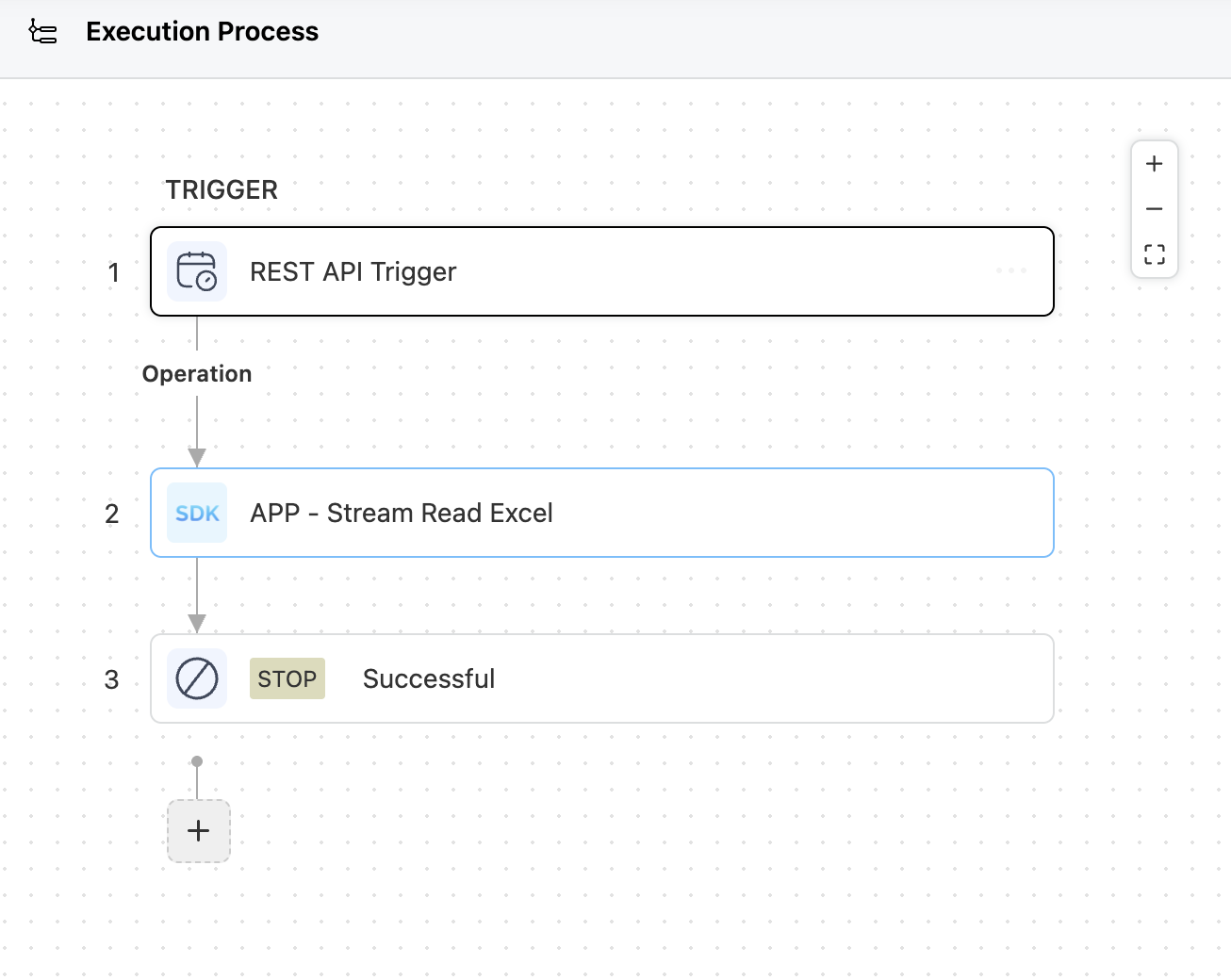

• 主流程

{
  "nodeList": [
    {
      "scheduleType": "ONE_TIME",
      "triggerType": "REST",
      "restTrigger": {
        "url": "/flow/api/flow-rest/warehouse/create-single-thread",
        "method": "POST",
        "requestParams": [
          {
            "name": "uniqueId",
            "type": "string",
            "optional": false
          }
        ],
        "requestBody": [
          {
            "name": "file",
            "label": "file",
            "dataType": "string",
            "optional": false
          }
        ],
        "eligibleForAgent": false
      },
      "startTime": 1742384792641,
      "periodStart": "00:00:00",
      "version": "2.0",
      "periodEnd": "23:59:59",
      "interval": 60,
      "inMemory": true,
      "inMemoryTransaction": true,
      "id": 1,
      "type": "TRIGGER",
      "enabled": true,
      "nodeName": "TRIGGER",
      "runAsCurrentUser": false
    },
    {
      "sdk": {
        "id": 33,
        "uuid": "8aaaf737-5d25-4223-9029-5c0660c5ae23",
        "name": "流式读取Excel数据",
        "inputFields": [
          {
            "name": "fileUrl",
            "label": "Rest Flow File Url",
            "dataType": "string",
            "controlType": "input",
            "optional": false
          },
          {
            "name": "startRow",
            "label": "Start Row",
            "controlType": "input",
            "optional": false
          },
          {
            "name": "sheetIndex",
            "label": "Sheet Index(Starts with 1)",
            "dataType": "string",
            "controlType": "input",
            "optional": true
          },
          {
            "name": "batchSize",
            "label": "Batch Size",
            "dataType": "string",
            "controlType": "input",
            "optional": true
          },
          {
            "name": "flowToken",
            "label": "Process Data Flow",
            "dataType": "string",
            "optional": true
          },
          {
            "name": "concurrent",
            "label": "Running Concurrently",
            "dataType": "string",
            "controlType": "select",
            "pickList": [
              "true",
              "false"
            ],
            "optional": true
          },
          {
            "name": "uniqueId",
            "label": "Unique ID for Running Concurrently",
            "dataType": "string",
            "controlType": "input",
            "optional": true
          }
        ],
        "outputFields": [
          {
            "name": "results",
            "label": "查询结果"
          },
          {
            "name": "count",
            "label": "结果数量",
            "dataType": "string"
          }
        ],
        "sdkType": "STREAM_READ_EXCEL",
        "input": {
          "fileUrl": "$1.restTrigger.requestBody.file",
          "sheetIndex": "1",
          "batchSize": "4000",
          "startRow": "2",
          "concurrent": "false",
          "flowToken": "batch-create-sub-flow-single-thread",
          "flowPbcToken": "master-data-management",
          "uniqueId": ""
        }
      },
      "version": "1.0",
      "id": 2,
      "type": "APP",
      "enabled": true,
      "nodeName": "APP - Stream Read Excel",
      "runAsCurrentUser": false
    },
    {
      "result": "Successful",
      "id": 3,
      "type": "STOP_JOB",
      "enabled": true,
      "nodeName": "STOP_JOB",
      "runAsCurrentUser": false
    }
  ]
}

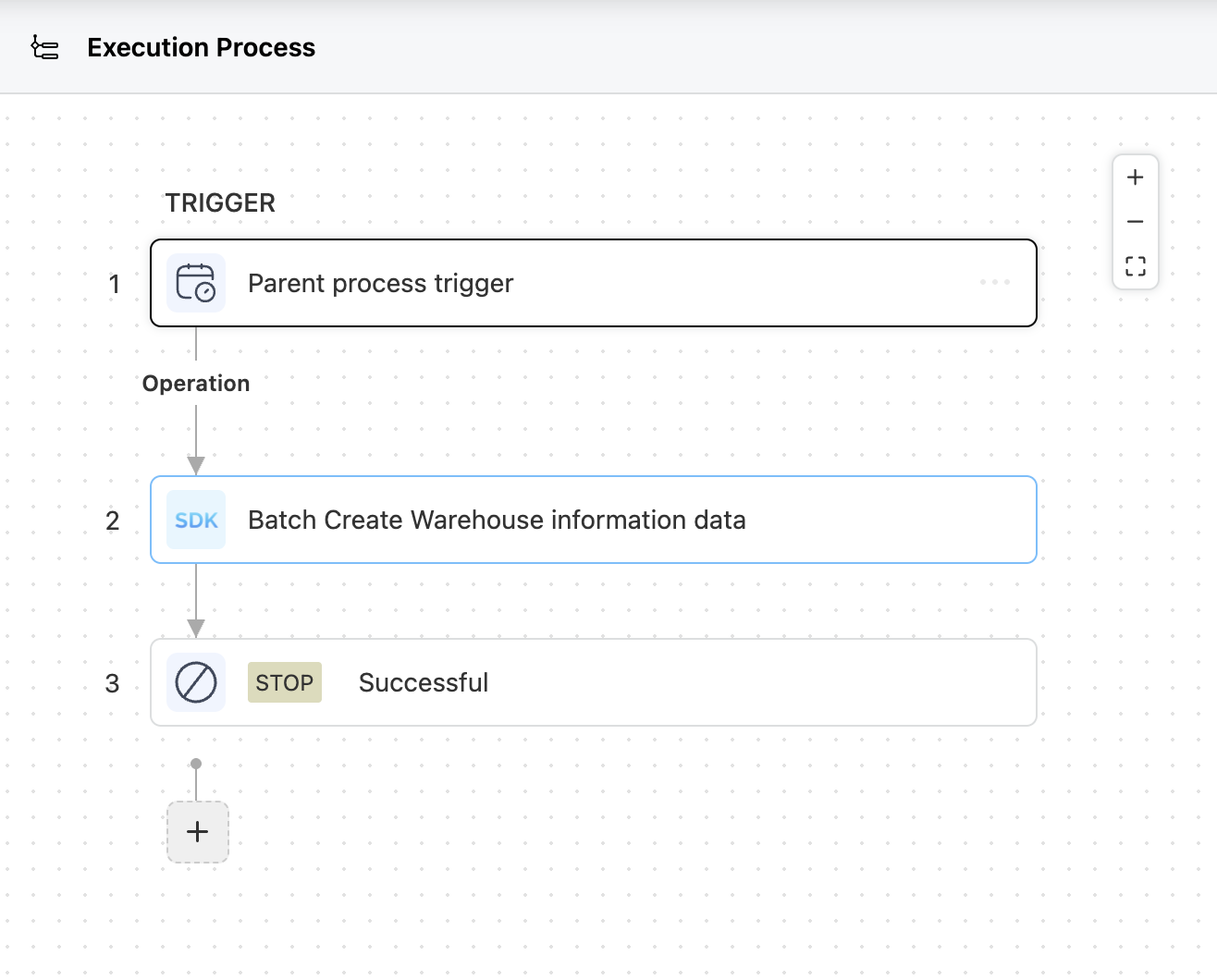

• 子流程

{
  "nodeList": [
    {
      "scheduleType": "ONE_TIME",
      "triggerType": "PARENT",
      "startTime": 1742384884888,
      "periodStart": "00:00:00",
      "version": "2.0",
      "periodEnd": "23:59:59",
      "interval": 60,
      "inMemory": false,
      "inMemoryTransaction": false,
      "parentTrigger": {
        "inputFields": [
          {
            "name": "excelData",
            "type": "string",
            "optional": false
          }
        ]
      },
      "id": 1,
      "type": "TRIGGER",
      "enabled": true,
      "nodeName": "TRIGGER",
      "runAsCurrentUser": false
    },
    {
      "sdk": {
        "id": 26,
        "uuid": "8abc1654-b307-4fe9-b41a-72f9d7481e79",
        "name": "批量新建表单数据",
        "inputFields": [
          {
            "name": "batchInput",
            "label": "batchInput",
            "dataType": "string",
            "controlType": "input",
            "optional": true
          },
          {
            "name": "formEntityToken",
            "label": "Form Entity",
            "controlType": "entity",
            "optional": false
          },
          {
            "name": "needReturnValue",
            "label": "Need Return Created Value?",
            "dataType": "string",
            "controlType": "select",
            "pickList": [
              "true",
              "false"
            ],
            "optional": true
          },
          {
            "name": "batchSize",
            "label": "Batch Size",
            "dataType": "string",
            "controlType": "input",
            "optional": true
          }
        ],
        "outputFields": [
          {
            "name": "results",
            "label": "返回结果"
          },
          {
            "name": "count",
            "label": "返回数量",
            "dataType": "string"
          }
        ],
        "sdkType": "BATCH_CREATE_ENTITY",
        "input": {
          "needReturnValue": "false",
          "formEntityToken": "warehouse-info-table-form",
          "pbcToken": "master-data-management",
          "batchInput": "$CURRENT_FLOW.excelData",
          "batchSize": "500"
        },
        "formEntityId": ""
      },
      "version": "1.0",
      "id": 3,
      "type": "APP",
      "enabled": true,
      "nodeName": "Batch Create Warehouse information data",
      "runAsCurrentUser": false
    },
    {
      "result": "Successful",
      "id": 4,
      "type": "STOP_JOB",
      "enabled": true,
      "nodeName": "STOP_JOB",
      "runAsCurrentUser": false
    }
  ]
}

[!WARNING]
在Copy此段json时，需要重新选择主流程中的Process Data Flow

2.1 并发可断点续传导入大量数据

可断点续传的重要参数时uniqueId，如果需要两次导入同一个Excel，则两次传输的 uniqueId 必须相同

• 主流程

{
  "nodeList": [
    {
      "scheduleType": "ONE_TIME",
      "triggerType": "REST",
      "restTrigger": {
        "url": "/flow/api/flow-rest/warehouse/create",
        "method": "POST",
        "requestParams": [
          {
            "name": "uniqueId",
            "type": "string",
            "optional": false
          }
        ],
        "requestBody": [
          {
            "name": "file",
            "label": "file",
            "dataType": "string",
            "optional": false
          }
        ],
        "eligibleForAgent": false
      },
      "startTime": 1742384792641,
      "periodStart": "00:00:00",
      "version": "2.0",
      "periodEnd": "23:59:59",
      "interval": 60,
      "inMemory": true,
      "inMemoryTransaction": true,
      "id": 1,
      "type": "TRIGGER",
      "enabled": true,
      "nodeName": "TRIGGER",
      "runAsCurrentUser": false
    },
    {
      "sdk": {
        "id": 33,
        "uuid": "8aaaf737-5d25-4223-9029-5c0660c5ae23",
        "name": "流式读取Excel数据",
        "inputFields": [
          {
            "name": "fileUrl",
            "label": "Rest Flow File Url",
            "dataType": "string",
            "controlType": "input",
            "optional": false
          },
          {
            "name": "startRow",
            "label": "Start Row",
            "controlType": "input",
            "optional": false
          },
          {
            "name": "sheetIndex",
            "label": "Sheet Index(Starts with 1)",
            "dataType": "string",
            "controlType": "input",
            "optional": true
          },
          {
            "name": "batchSize",
            "label": "Batch Size",
            "dataType": "string",
            "controlType": "input",
            "optional": true
          },
          {
            "name": "flowToken",
            "label": "Process Data Flow",
            "dataType": "string",
            "optional": true
          },
          {
            "name": "concurrent",
            "label": "Running Concurrently",
            "dataType": "string",
            "controlType": "select",
            "pickList": [
              "true",
              "false"
            ],
            "optional": true
          },
          {
            "name": "uniqueId",
            "label": "Unique ID for Running Concurrently",
            "dataType": "string",
            "controlType": "input",
            "optional": true
          }
        ],
        "outputFields": [
          {
            "name": "results",
            "label": "查询结果"
          },
          {
            "name": "count",
            "label": "结果数量",
            "dataType": "string"
          }
        ],
        "sdkType": "STREAM_READ_EXCEL",
        "input": {
          "fileUrl": "$1.restTrigger.requestBody.file",
          "sheetIndex": "1",
          "batchSize": "4000",
          "startRow": "2",
          "concurrent": "true",
          "flowToken": "batch-create-sub-flow",
          "flowPbcToken": "master-data-management",
          "uniqueId": "$1.restTrigger.requestParams.uniqueId"
        }
      },
      "version": "1.0",
      "id": 2,
      "type": "APP",
      "enabled": true,
      "nodeName": "APP - Stream Read Excel",
      "runAsCurrentUser": false
    },
    {
      "sdk": {
        "id": 720,
        "uuid": "c64c0109-9870-461e-835f-1d4414b60a85",
        "name": "Redis retrieves the all fields from the hash table",
        "inputFields": [
          {
            "name": "key",
            "label": "Hash table key",
            "dataType": "string",
            "controlType": "input",
            "optional": false
          }
        ],
        "outputFields": [
          {
            "name": "status",
            "label": "Execution result status",
            "dataType": "string"
          },
          {
            "name": "value",
            "label": "results of execution",
            "dataType": "string"
          }
        ],
        "sdkType": "REDIS_HGETALL",
        "input": {
          "key": "$1.restTrigger.requestParams.uniqueId"
        }
      },
      "version": "1.0",
      "id": 5,
      "type": "APP",
      "enabled": true,
      "nodeName": "APP - Redis retrieves the all fields from the hash table",
      "runAsCurrentUser": false
    },
    {
      "sdk": {
        "id": 7,
        "uuid": "492f8c00-14de-4837-a1f6-ed6ff0a2870e",
        "name": "Groovy script",
        "inputFields": [
          {
            "name": "hashTableValues",
            "label": "hashTableValues",
            "dataType": "string",
            "optional": false
          }
        ],
        "outputFields": [
          {
            "name": "faliedRows",
            "label": "faliedRows",
            "dataType": "string"
          }
        ],
        "sdkType": "GENERAL_GROOVY",
        "code": "\ndef keysNotSucceedList = hashTableValues.findAll { key, value -> value != \"succeed\" }.keySet().toList()\n\ndef faliedRows = keysNotSucceedList.collect { key ->\n    key.split(\"_\").collect { it.toInteger() }\n}\n\nreturn ['faliedRows': String.valueOf(faliedRows)]\n",
        "input": {
          "hashTableValues": "$5.value"
        }
      },
      "version": "1.0",
      "id": 6,
      "type": "APP",
      "enabled": true,
      "nodeName": "APP - Groovy script",
      "runAsCurrentUser": false
    },
    {
      "sdk": {
        "id": 11,
        "uuid": "f63bae3b-4003-4b29-aedf-4626216fc12a",
        "name": "Set workflow output value",
        "inputFields": [
          {
            "name": "faliedRows",
            "label": "Falied rows",
            "dataType": "string",
            "optional": false
          }
        ],
        "sdkType": "SET_VALUE_TO_INSTANCE"
      },
      "version": "2.0",
      "input": {
        "faliedRows": "$6.faliedRows"
      },
      "id": 4,
      "type": "APP",
      "enabled": true,
      "nodeName": "APP - Set workflow output value",
      "runAsCurrentUser": false
    },
    {
      "result": "Successful",
      "id": 3,
      "type": "STOP_JOB",
      "enabled": true,
      "nodeName": "STOP_JOB",
      "runAsCurrentUser": false
    }
  ]
}

• 子流程

{
  "nodeList": [
    {
      "scheduleType": "ONE_TIME",
      "triggerType": "PARENT",
      "startTime": 1742384884888,
      "periodStart": "00:00:00",
      "version": "2.0",
      "periodEnd": "23:59:59",
      "interval": 60,
      "inMemory": false,
      "inMemoryTransaction": false,
      "parentTrigger": {
        "inputFields": [
          {
            "name": "excelData",
            "type": "string",
            "optional": false
          },
          {
            "name": "startRowNum",
            "type": "string",
            "optional": false
          },
          {
            "name": "endRowNum",
            "type": "string",
            "optional": false
          },
          {
            "name": "uniqueId",
            "type": "string",
            "optional": false
          }
        ]
      },
      "id": 1,
      "type": "TRIGGER",
      "enabled": true,
      "nodeName": "TRIGGER",
      "runAsCurrentUser": false
    },
    {
      "sdk": {
        "id": 7,
        "uuid": "492f8c00-14de-4837-a1f6-ed6ff0a2870e",
        "name": "Groovy script",
        "inputFields": [
          {
            "name": "startRowNum",
            "label": "startRowNum",
            "dataType": "string",
            "optional": false
          },
          {
            "name": "endRowNum",
            "label": "endRowNum",
            "dataType": "string",
            "optional": false
          }
        ],
        "outputFields": [
          {
            "name": "key",
            "label": "key",
            "dataType": "string"
          }
        ],
        "sdkType": "GENERAL_GROOVY",
        "code": "def key = startRowNum + '_' + endRowNum\nreturn ['key': key]",
        "input": {
          "startRowNum": "$CURRENT_FLOW.startRowNum",
          "endRowNum": "$CURRENT_FLOW.endRowNum"
        }
      },
      "version": "1.0",
      "id": 7,
      "type": "APP",
      "enabled": true,
      "nodeName": "Get redis hash table key",
      "runAsCurrentUser": false
    },
    {
      "sdk": {
        "id": 732,
        "uuid": "c64c0109-9870-461e-835f-1d4414b60a85",
        "name": "Redis retrieves the specified fields from the hash table",
        "inputFields": [
          {
            "name": "key",
            "label": "Redis操作的哈希表",
            "dataType": "string",
            "controlType": "input",
            "optional": false
          },
          {
            "name": "field",
            "label": "Redis操作的键",
            "dataType": "string",
            "controlType": "input",
            "optional": false
          }
        ],
        "outputFields": [
          {
            "name": "status",
            "label": "Execution result status",
            "dataType": "number"
          },
          {
            "name": "value",
            "label": "results of execution",
            "dataType": "string"
          }
        ],
        "sdkType": "REDIS_HGET",
        "code": "",
        "input": {
          "key": "$CURRENT_FLOW.uniqueId",
          "field": "$7.key"
        }
      },
      "version": "1.0",
      "id": 14,
      "type": "APP",
      "enabled": true,
      "nodeName": "APP - Redis retrieves the specified fields from the hash table",
      "runAsCurrentUser": false
    },
    {
      "conditions": [
        {
          "id": 1277,
          "dataField": "$14.value",
          "condition": "does_not_equal",
          "value": "succeed"
        }
      ],
      "subFlow": [
        {
          "subFlow": [
            {
              "sdk": {
                "id": 26,
                "uuid": "8abc1654-b307-4fe9-b41a-72f9d7481e79",
                "name": "批量新建表单数据",
                "inputFields": [
                  {
                    "name": "batchInput",
                    "label": "batchInput",
                    "dataType": "string",
                    "controlType": "input",
                    "optional": true
                  },
                  {
                    "name": "formEntityToken",
                    "label": "Form Entity",
                    "controlType": "entity",
                    "optional": false
                  },
                  {
                    "name": "needReturnValue",
                    "label": "是否需要返回创建的值",
                    "dataType": "string",
                    "controlType": "select",
                    "pickList": [
                      "true",
                      "false"
                    ],
                    "optional": true
                  },
                  {
                    "name": "batchSize",
                    "label": "Batch Size",
                    "dataType": "string",
                    "controlType": "input",
                    "optional": true
                  }
                ],
                "outputFields": [
                  {
                    "name": "results",
                    "label": "返回结果"
                  },
                  {
                    "name": "count",
                    "label": "返回数量",
                    "dataType": "string"
                  }
                ],
                "sdkType": "BATCH_CREATE_ENTITY",
                "input": {
                  "needReturnValue": "false",
                  "formEntityToken": "warehouse-info-table-form",
                  "pbcToken": "master-data-management",
                  "batchInput": "$CURRENT_FLOW.excelData",
                  "batchSize": "50"
                },
                "formEntityId": ""
              },
              "version": "1.0",
              "id": 3,
              "type": "APP",
              "enabled": true,
              "nodeName": "Bulk insert data into Warehouse Information Table",
              "runAsCurrentUser": false
            },
            {
              "sdk": {
                "id": 729,
                "uuid": "ad1bac32-fe45-4ca8-894e-0d559e760520",
                "name": "Redis sets the specified fields in the hash table",
                "inputFields": [
                  {
                    "name": "key",
                    "label": "Redis操作的哈希表",
                    "dataType": "string",
                    "controlType": "input",
                    "optional": false
                  },
                  {
                    "name": "field",
                    "label": "Redis操作的键",
                    "dataType": "string",
                    "controlType": "input",
                    "optional": false
                  },
                  {
                    "name": "value",
                    "label": "Redis操作的键值",
                    "dataType": "string",
                    "controlType": "input",
                    "optional": false
                  }
                ],
                "outputFields": [
                  {
                    "name": "status",
                    "label": "Execution result status",
                    "dataType": "number"
                  }
                ],
                "sdkType": "REDIS_HSET",
                "code": "",
                "input": {
                  "key": "$CURRENT_FLOW.uniqueId",
                  "field": "$7.key",
                  "value": "succeed"
                }
              },
              "version": "1.0",
              "id": 15,
              "type": "APP",
              "enabled": true,
              "nodeName": "APP - Redis sets the specified fields in the hash table",
              "runAsCurrentUser": false
            }
          ],
          "retryTimesInMonitorBlock": 0,
          "retryInterval": 0,
          "isRetryIf": false,
          "onErrorSubFlow": [
            {
              "sdk": {
                "id": 729,
                "uuid": "ad1bac32-fe45-4ca8-894e-0d559e760520",
                "name": "Redis sets the specified fields in the hash table",
                "inputFields": [
                  {
                    "name": "key",
                    "label": "Redis操作的哈希表",
                    "dataType": "string",
                    "controlType": "input",
                    "optional": false
                  },
                  {
                    "name": "field",
                    "label": "Redis操作的键",
                    "dataType": "string",
                    "controlType": "input",
                    "optional": false
                  },
                  {
                    "name": "value",
                    "label": "Redis操作的键值",
                    "dataType": "string",
                    "controlType": "input",
                    "optional": false
                  }
                ],
                "outputFields": [
                  {
                    "name": "status",
                    "label": "Execution result status",
                    "dataType": "number"
                  }
                ],
                "sdkType": "REDIS_HSET",
                "code": "",
                "input": {
                  "key": "$CURRENT_FLOW.uniqueId",
                  "field": "$7.key",
                  "value": "falied"
                }
              },
              "version": "1.0",
              "id": 13,
              "type": "APP",
              "enabled": true,
              "nodeName": "APP - Redis sets the specified fields in the hash table",
              "runAsCurrentUser": false
            }
          ],
          "id": 10,
          "type": "HANDLE_ERRORS",
          "enabled": true,
          "nodeName": "HANDLE_ERRORS",
          "runAsCurrentUser": false
        }
      ],
      "id": 9,
      "type": "IF",
      "enabled": true,
      "nodeName": "IF",
      "runAsCurrentUser": false
    },
    {
      "result": "Successful",
      "id": 4,
      "type": "STOP_JOB",
      "enabled": true,
      "nodeName": "STOP_JOB",
      "runAsCurrentUser": false
    }
  ]
}

[!WARNING]
在Copy此段json时，需要重新选择主流程中的Process Data Flow
