Dot Walking Script

Dot Walking Script (DW) can use native Groovy and our built-in functions. It can be used in Groovy scripts and Flow inputs.

1. Use Cases

Data can be passed using the $.xx.xx format in inputs and Groovy, where array values are passed using $.xx.xx[n].xx.

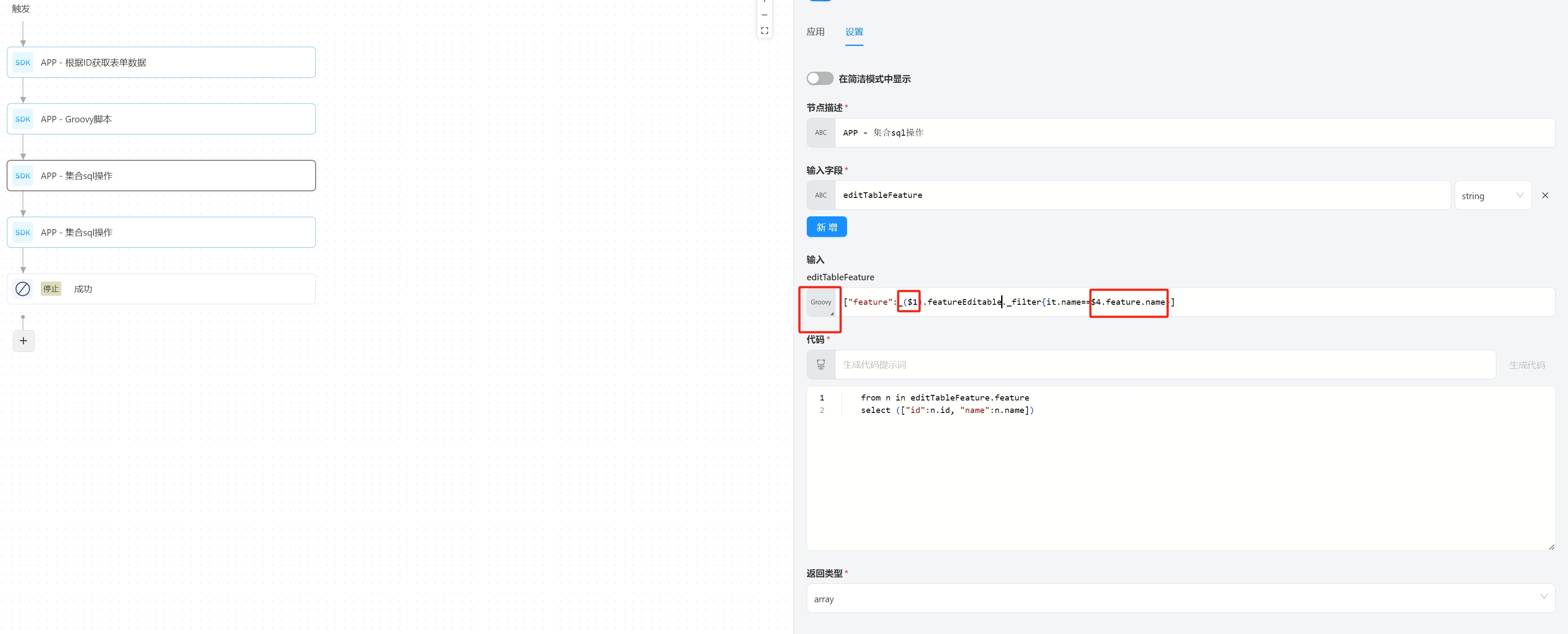

1.1 Using in Flow Inputs

Switch the input to Groovy mode, and you can use the $.xx.xx format to pass data within the Groovy script.

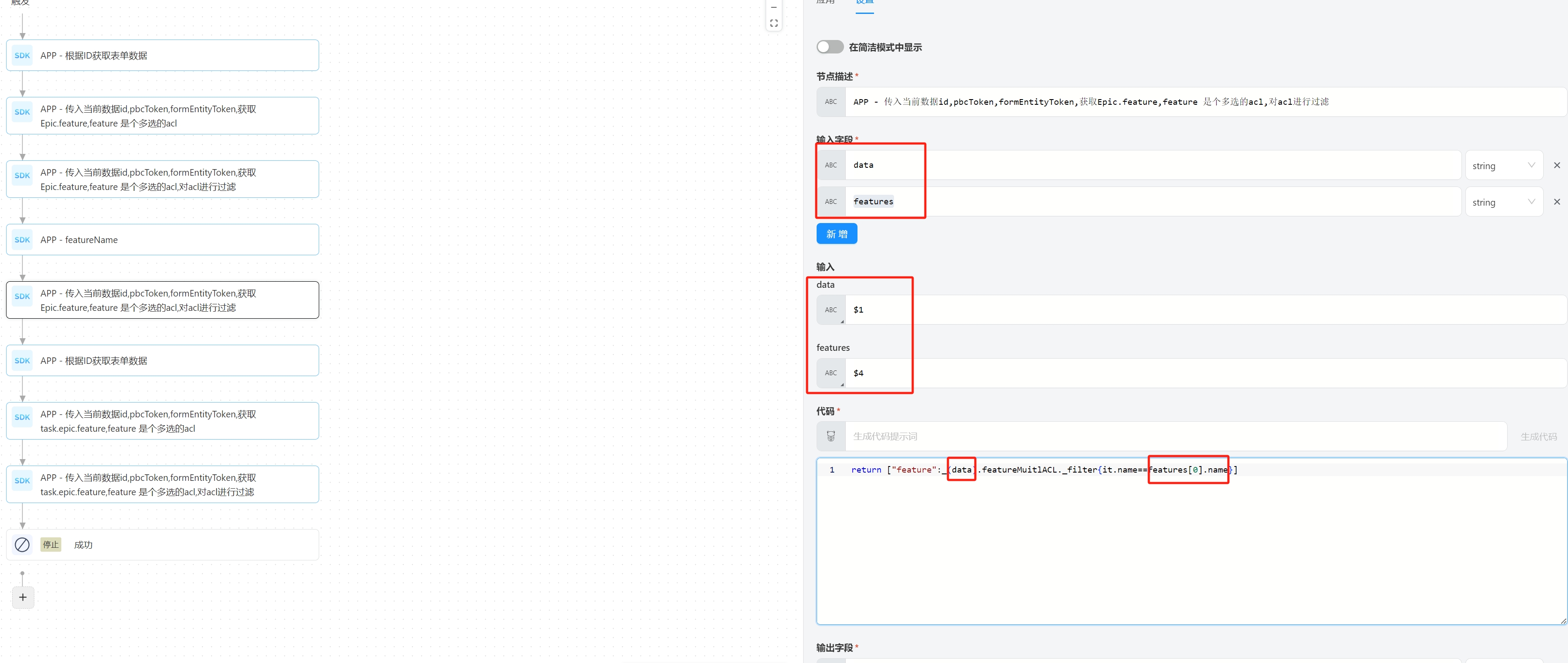

1.2 Using in Groovy Scripts

Parameters can be passed using input fields in Groovy SDKs.

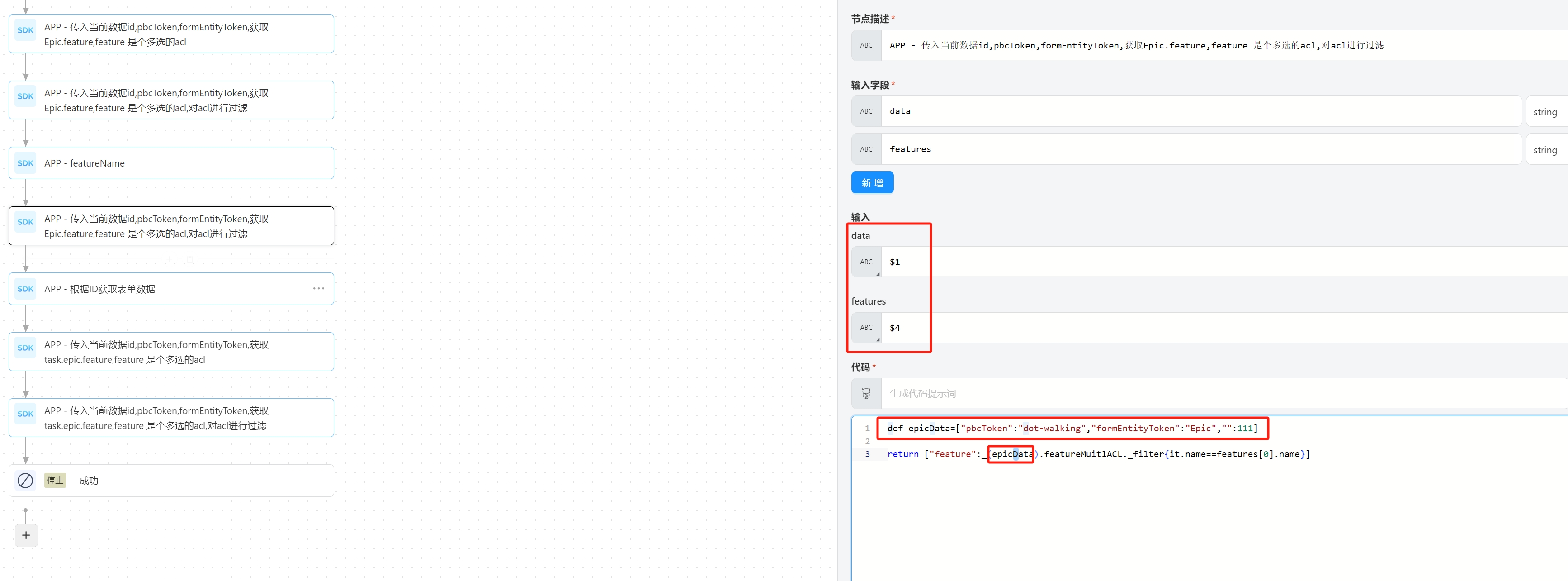

1.3 Unsupported Parameter Passing

Parameters defined within Groovy scripts are not supported for passing, such as epicData in this example. Similarly, parameters defined in Flow inputs are also not supported for passing.

2. Example Forms

The following examples will be based on these four forms. Each form has field names identical to their tokens, except that the first letter of the tokens is lowercase. For example, the Title field in the Epic form corresponds to the token title.

For field names like ACL, Select, and Editable, the first word indicates the data source, the middle part indicates whether it is multi-select, and the last part indicates the component type. For example:

• FeatureACL indicates the data source is Feature, single-select, and the component type is ACL.
• FeatureMultiACL indicates the data source is Feature, multi-select, and the component type is ACL.
• FeatureEditable indicates the data source is Feature, and the component type is Editable.

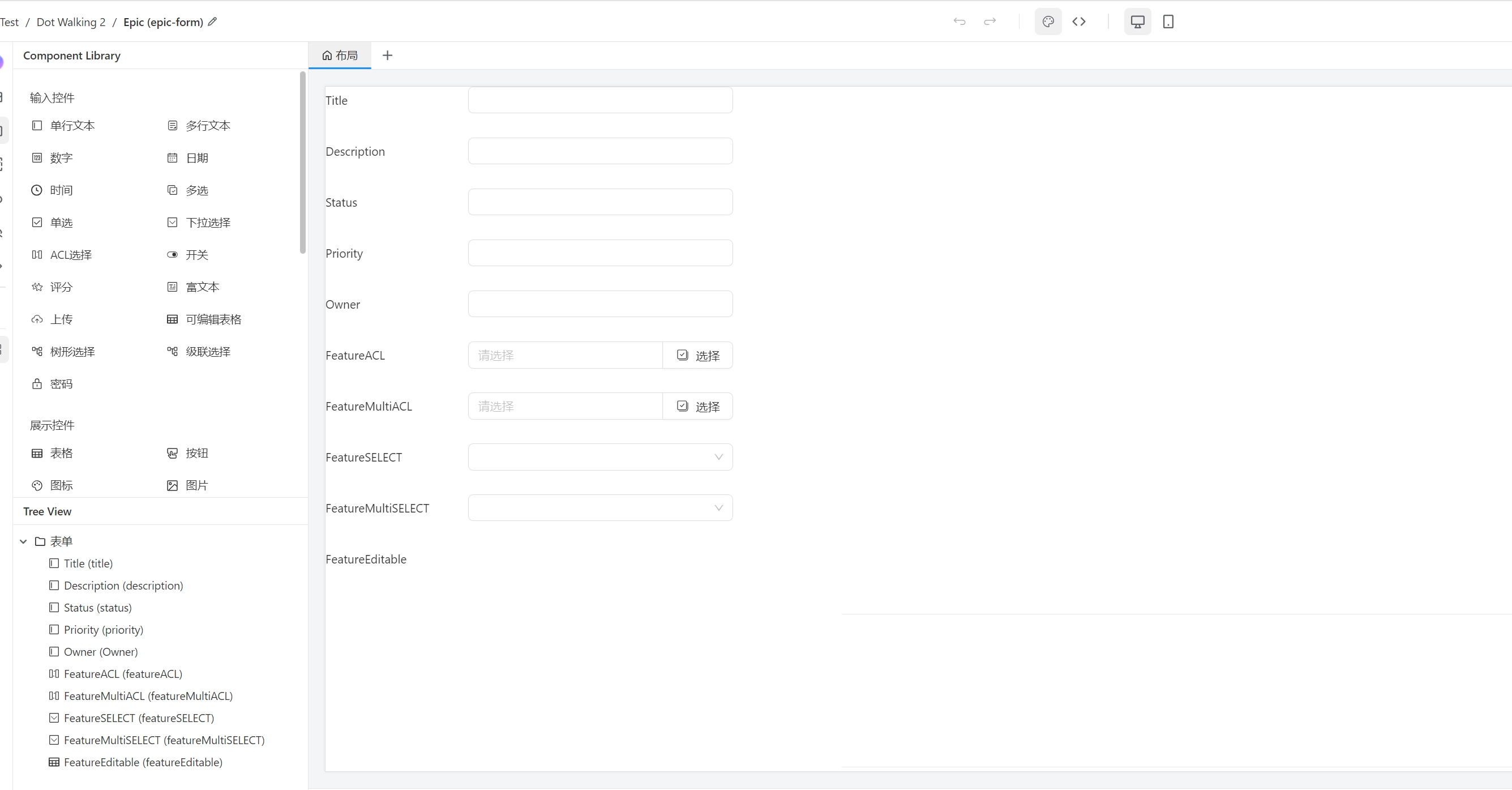

2.1 Epic

• pbcToken: dot-walking
• formEntityToken: epic

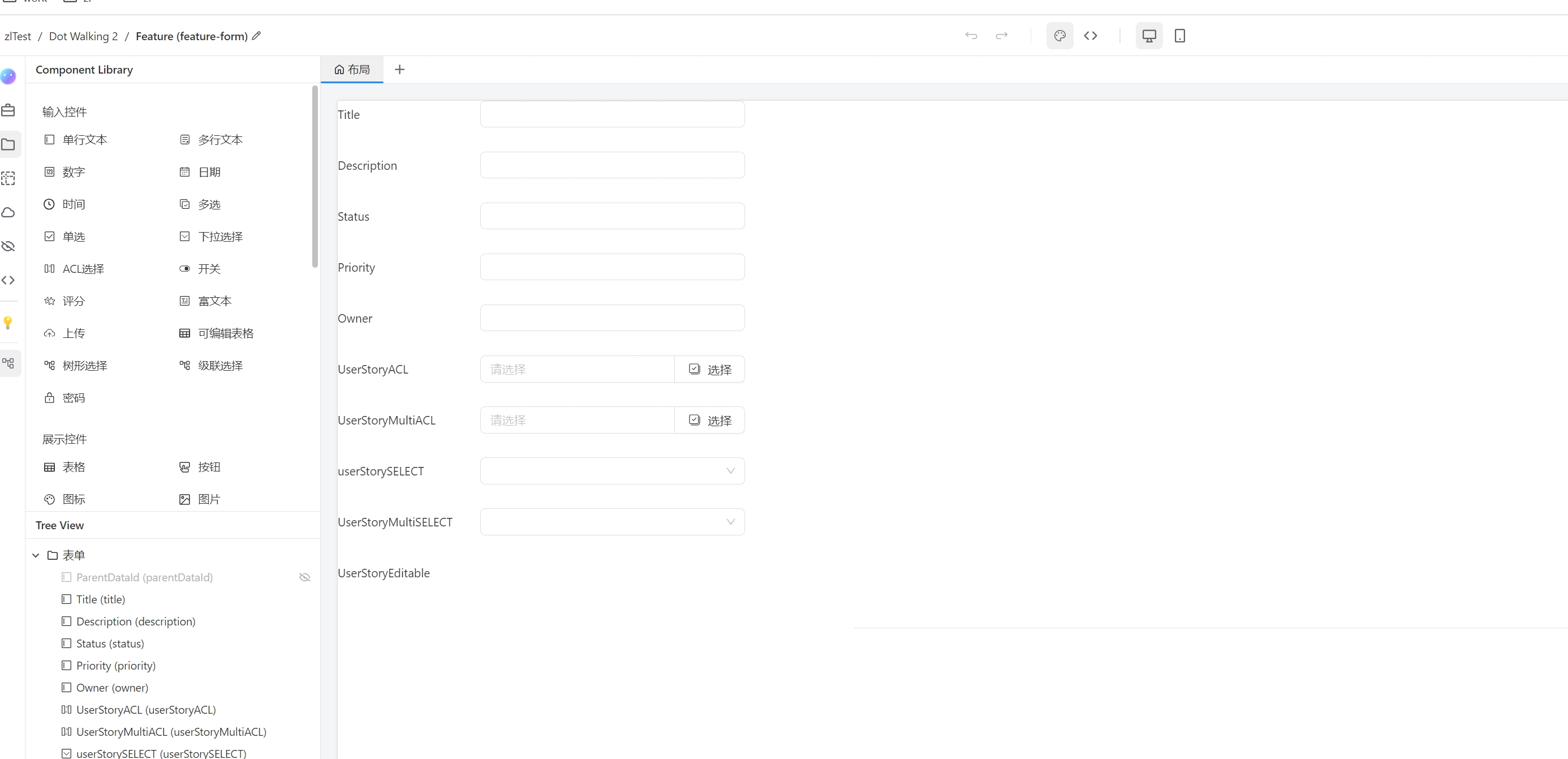

2.2 Feature

pbcToken:dot-walking formEntityToken:feature

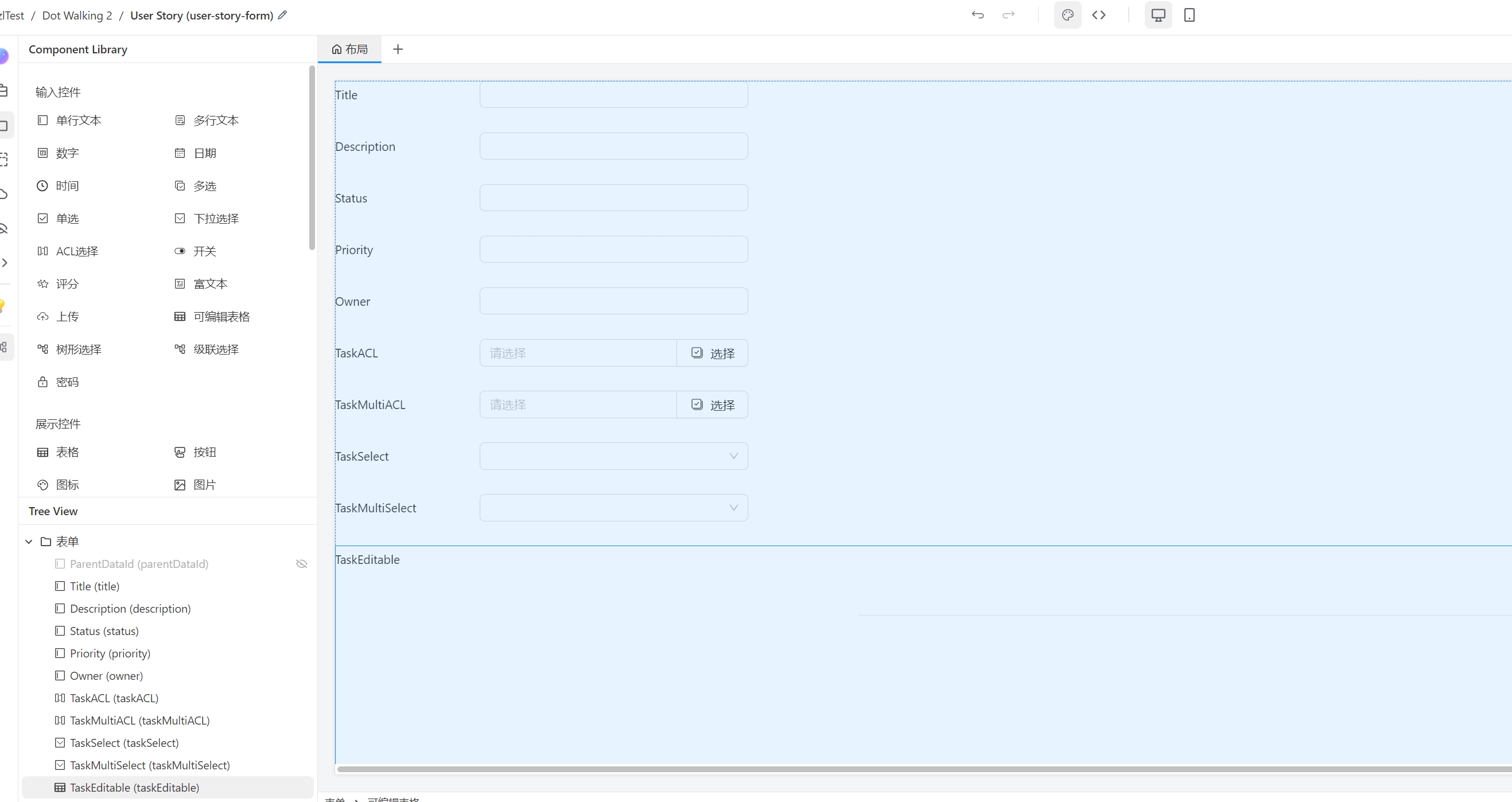

2.3 User Story

pbcToken:dot-walking formEntityToken:userStory

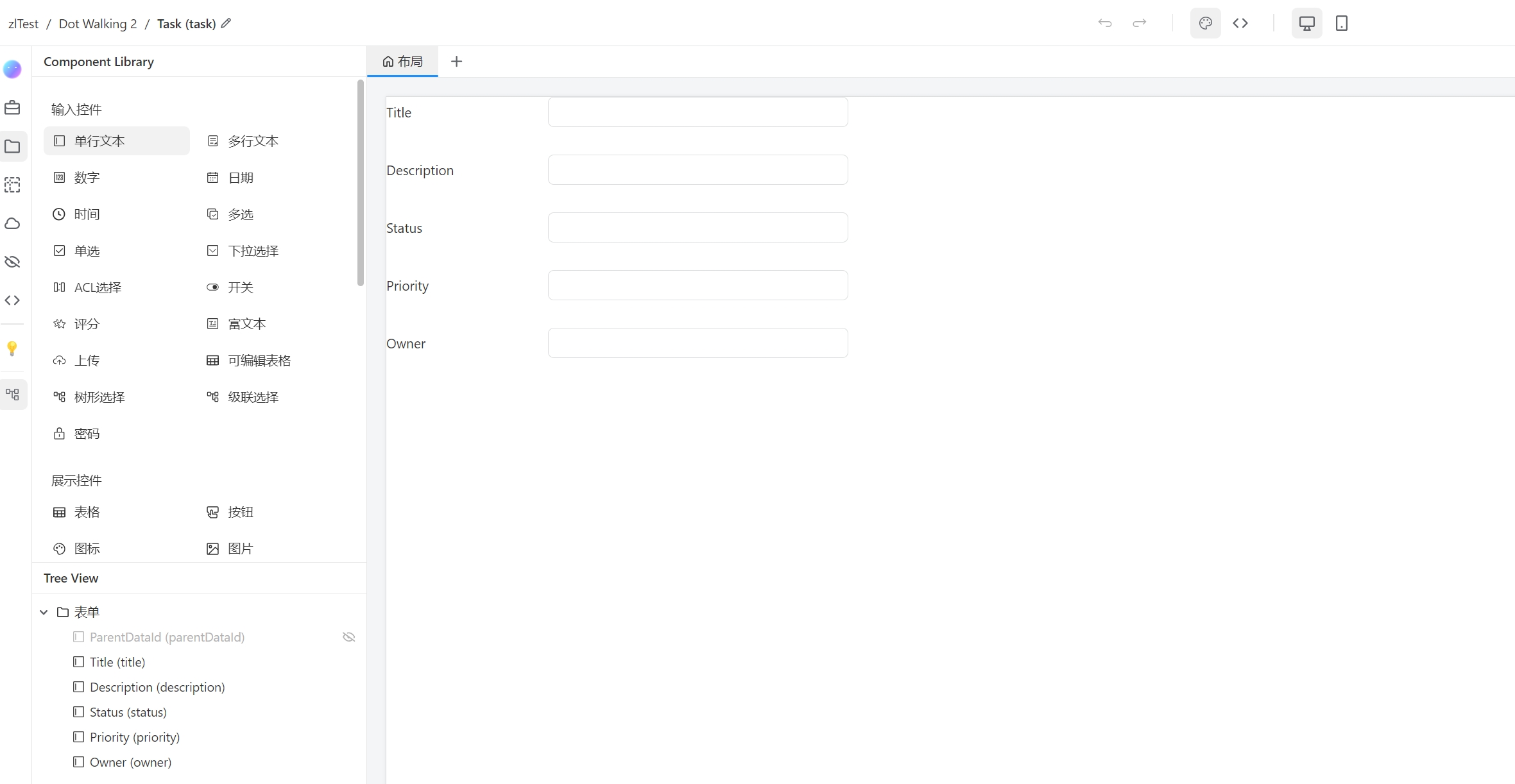

2.4 Task

pbcToken:dot-walking formEntityToken:task

3. Syntax

DW consists of properties (field tokens in formEntity) and functions (such as _filter, _findOne, _resolve). All properties and methods return two types of values:

1. DATA: Values related to formEntityData.
2. DWR: DW objects (i.e., Dot Walking References).

3.1 InputField Control Types

In the CETA platform, form input controls are divided into two types: reference types and basic types.

3.1.1 引用类型 返回值是DWR

3.1.1 Reference Types (Return DWR)
select (single or multi-select)
acl (single or multi-select)
editable (always multi-select)

3.1.2 Basic Types (Return DATA)

input
number
date
time
upload
checkBox
textArea
radio
switch
rate

3.2 Custom Functions

3.2.1 DW Entry Function _() (Returns DWR)

_(data) is the entry function for Dot Walking scripts. Its parameter data is a Map object containing the following information:

• pbcToken (required)
• formEntityToken (required)
• id (this is the formEntityDataId, required)

3.2.2 _filter(closure) (Filter Function, Returns DATA)

In Groovy, it is the default parameter name for closures, representing the individual element being passed to the closure. For the _filter(closure) function, closure is a closure, and it represents the current element formEntityData in the collection. You can directly operate on the fields of formEntityData after it and use operators like &&, ||, ! to combine each operation for convenient conditional judgment and filtering.

The following table shows examples of _filter only. For brevity and clarity, the preceding part is:

_(["pbcToken":"dot-walking","formEntityToken":"epic","id":200821]).featureMultiACL.

This represents finding the record with id 200821 in the Epic table's featureMultiACL and filtering the features that meet the _filter conditions.

Operator	Description	Parameter	InputField Control Type	Example
==	Equals	None	Basic Types	_filter{it.title == 'Dot Walking'} (feature's title equals "Dot Walking")
!=	Not Equals	None	Basic Types	_filter{it.title != 'Dot Walking'} (feature's title does not equal "Dot Walking")
>	Greater Than	None	Basic Types	_filter{it.priority > 5} (feature's priority is greater than 5)
<	Less Than	None	Basic Types	_filter{it.priority < 5} (feature's priority is less than 5)
>=	Greater Than or Equal	None	Basic Types	_filter{it.priority >= 5} (feature's priority is greater than or equal to 5)
<=	Less Than or Equal	None	Basic Types	_filter{it.priority <= 5} (feature's priority is less than or equal to 5)
_contains(condition)	Contains	String	Basic Types	_filter{it.title._contains("Dot")} (feature's title contains "Dot")
_notContains(condition)	Does Not Contain	String	Basic Types	_filter{it.title._notContains("Dot")} (feature's title does not contain "Dot")
_in(List<condition>)	In	Array[String]	Basic Types	_filter{it.priority._in(5, 6, 7)} (feature's priority is 5, 6, or 7)
_between(condition1, condition2)	Between	Number1, Number2	Basic Types	_filter{it.priority._between(5, 7)} (feature's priority is greater than 5 and less than 7)
_startsWith(condition1)	Starts With	String	Basic Types	_filter{it.title._startsWith("Dot")} (feature's title starts with "Dot")
_endsWith(condition1)	Ends With	String	Basic Types	_filter{it.title._endsWith("Dot")} (feature's title ends with "Dot")
_blank()	Is Blank	None	Basic Types	_filter{it.title._blank()} (feature's title is blank)
_notBlank()	Is Not Blank	None	Basic Types	_filter{it.title._notBlank()} (feature's title is not blank)
_exists()	Exists	Closure	Reference Types	_filter{it.userStory._exists{it.owner == "Bot"}} (feature has a user story where the owner is "Bot")
_notExists()	Does Not Exist	Closure	Reference Types	_filter{it.userStory._notExists{it.owner == "Bot"}} (feature does not have a user story where the owner is "Bot")

---

3.2.2.1 Example 1:

To query the featureACL of the Epic record with ID 200821, the following conditions must be met:

1. The title field of the feature table equals "Dot Walking".
2. The status field of the feature table is not blank.
3. The userStoryACL field exists, and:
   • The title field of the userStory table starts with "DOT" or ends with "WALKING".

_([pbcToken: "dot-walking", formEntityToken: "epic", id: 200821]).featureACL._filter {
    it.title == "Dot Walking" &&
    it.status._notBlank() &&
    it.userStoryACL._exists {
        it.title._startsWith("DOT") || it.title._endsWith("WALKING")
    }
}

---

3.2.3 _findOne(closure) (Find One, Returns DWR)

This function is similar to _filter, but with the following differences:

• The return value is DWR.
• If multiple results are found, an error will be thrown.
• If no result is found, it returns null (for basic types) or [] (for reference types).
• It is expected to find one result.

---

3.2.4 _resolve() (Resolve, Returns DATA)

Returns the formEntityData collection of the property that calls _resolve().

---

3.3 Syntax Rules

The DW call chain consists of properties and functions connected by .:

1. The _() function can only call inputField properties.
2. If the property is of basic type, the call ends, and DATA is returned.
3. If it is a multi-select reference type, you can call functions like _filter(closure), _resolve(), _findOne(closure):
   • After calling _filter(closure) or _resolve(), the call ends, and DATA is returned.
   • After calling _findOne(closure), you can continue to call the inputField property of the associated data source and repeat step 2.
4. If it is a single-select reference type, you can continue to call the inputField property of the associated data source or _resolve(), then repeat step 2.

---

3.4 Examples

All examples below use the following data: ["pbcToken": "dot-walking", "formEntityToken": "epic", "id": 200821].

3.4.1 Example 1:

Retrieve all userStoryMultiACL associated with the featureACL from the Epic record (ID 200821).

_(data).featureACL.userStoryMultiACL._resolve()

---

3.4.2 Example 2:

To query the featureMultiACL of the Epic record with ID 200821 and filter records with title equal to "Dot Walking", then retrieve all userStoryMultiACL, follow these steps:

1. Find featureMultiACL in the Epic record (ID 200821).
2. Use _findOne to filter items with title equal to "Dot Walking".
3. Retrieve all userStoryMultiACL from the filtered item.

Compared to Example 1, since featureMultiACL is multi-select, _findOne is needed for filtering, while featureACL is single-select and does not require this step.

_(data).featureMultiACL._findOne({ it.title == "Dot Walking" }).userStoryMultiACL._resolve()

---

3.4.3 Example 3:

To query the featureACL of the Epic record with ID 200821 and retrieve all userStoryMultiACL that meet the following conditions:

1. Find all userStoryMultiACL in featureACL.
2. Filter records in the userStory table where title equals "Dot Walking" and status equals "Active".
3. Ensure that taskMultiACL contains at least one task where the title in the task table starts with "DOT" or ends with "WALKING".

This way, you can find all userStoryMultiACL that meet these conditions.

_(data).featureACL.userStoryMultiACL._filter {
    it.title == "Dot Walking" && it.status == "Active" && it.taskMultiACL._exists {
        it.title._startsWith("DOT") || it.title._endsWith("WALKING")
    }
}

---

3.5 Using in Forms

In Forms, select/acl components support expressions:

3.5.1 Syntax

• In the select/acl mapping, you can define custom key-value pairs in addition to the default label, value.
• The syntax for value expressions is different from DW expressions and uses the formEntity.fieldToken.fieldToken.. dot notation of the current associated data source formEntity. If the fieldToken is of basic type (3.1.2 Basic Types), the dot notation stops; if it is a reference type (3.1.1 Reference Types), you can continue with the dot notation.

Example:

"mapping": {
    "value": "id", // default
    "label": "title", // default
    "featureTitle": "title", // Title field of Feature
    "featureUserStoryACL": "userStoryACL", // userStoryACL field of Feature
    "featureUserStoryACLTitle": "userStoryACL.title", // Title of the associated Story in userStoryACL
    "featureUserStoryACLTaskACL": "userStoryACL.taskACL" // taskACL of the associated Story in userStoryACL
}

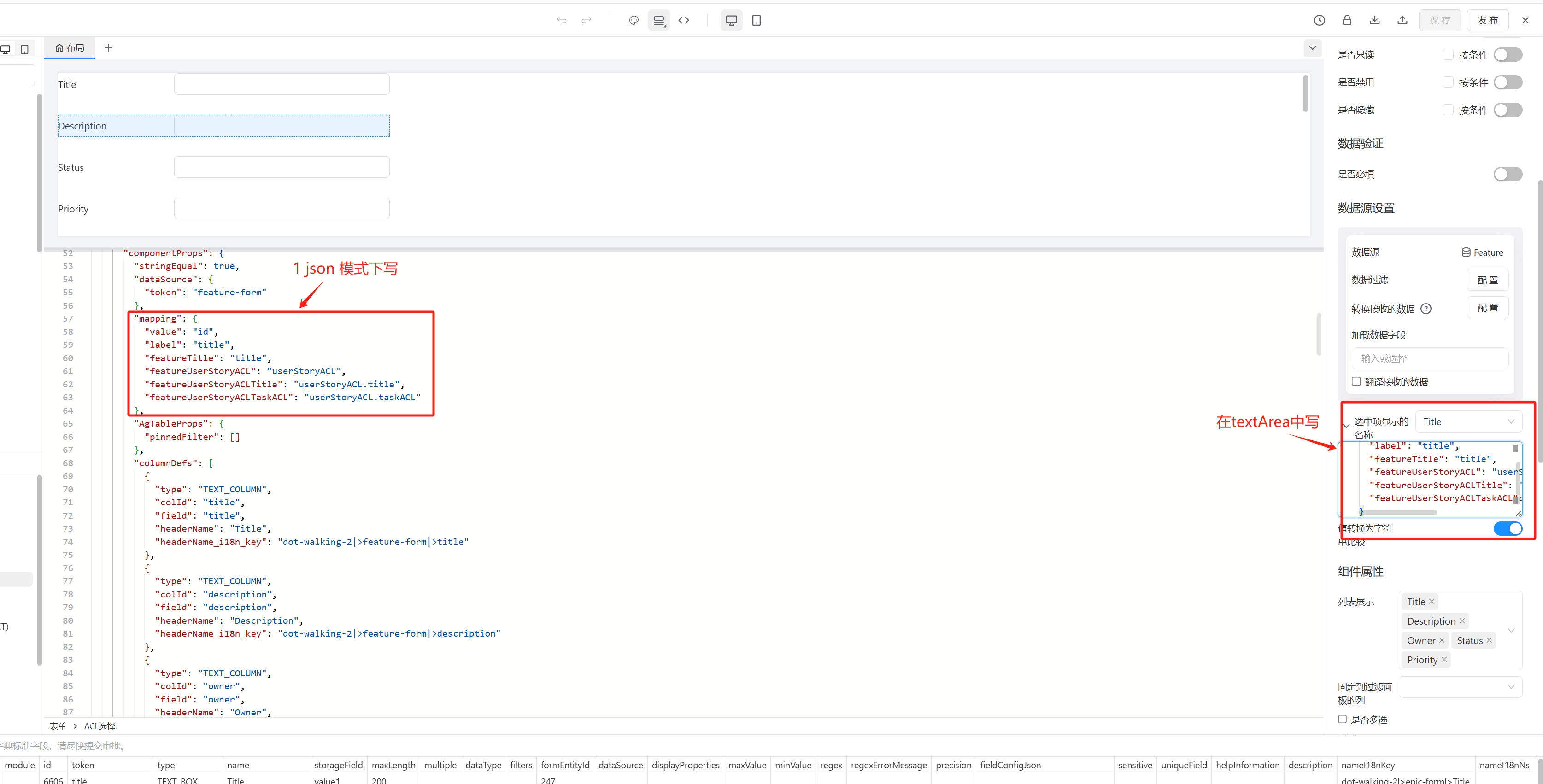

3.5.2 Usage

• You can write expressions in JSON mode or in the text area of the associated data source of the select/acl component.
